Key Features:
1. High efficiency and energy saving: three-stage wet back design, thermal efficiency is more than 98% (over 105% for condensation type) using threaded smoke tube + tail condenser, exhaust temperature can be reduced to below 60℃.
2. Low emission: NOx emission is less than 30mg/m³ (low nitrogen type), in line with the most stringent environmental standards, suitable for natural gas, diesel, biogas and other clean fuels.
3. Intelligent control: fully automatic PLC control system, support remote monitoring, fault self-diagnosis. Automatic adjustment of air-fuel ratio, load adjustment range 1:10.
4. Safe and reliable: multiple safety protection (off, over pressure, lack of water, leakage, etc.) The boiler body is made of Q345R/Q245R high-quality steel plate, life more than 15 years.
5. Fast steam production: it only takes 5-15 minutes (depending on capacity) from cold start to rated pressure.
Core Selling Points:
1. Energy saving and cost saving: 10%-15% less fuel than traditional boiler.
2. Ultra-low nitrogen emission: easy to pass the environmental protection acceptance.
3. Intelligent unattended: reduce manual intervention and reduce operation and maintenance costs.
4. Modular design: flexible installation, adapt to renovation projects.
5. Policy support: Gas-fired boilers enjoy clean energy subsidies.
Typical applications:
1. Food processing (sterilization, distillation).
2. Pharmaceutical plant (extraction, sterilization).
3. Textile printing and dyeing (stabilizer, drying).
4. Chemical industry (reactor steam supply).
Product spotlights:
Supplier highlights:This supplier is both a manufacturer and trader, cooperates with Fortune 500 companies and excels in quality control, offering full customization and design-based services. Main export countries include the United States, Indonesia, and Zimbabwe with a positive review rate of 100.0%.
Key attributes：
key selling points | Automatic, Easy To Operate | Material | Stainless Steel, Carbon Steel |
Fuel | Gas-fired/Oil-fired | pressure | Low Pressure |
structure | Fire Tube | output | Steam |
usage | Industrial | type | Natural Circulation |
Style | Horizontal | Warranty | 2 Year |
core components | Screw, Pump, Gear, Motor, Pressure vessel | machinery test report | Provided |
video outgoing-inspection | Provided | Weight (KG) | 35000 |
place of origin | Henan, China | brand name | Yin Xing Boiler |
dimension(l*w*h) | Refer To Models | Product | Diesel Oil Gas Fired Steam Generator |
Thermal efficiency | ≥ 93% | Rated pressure | 0.7Mpa/1.0Mpa/1.5Mpa/2.0Mpa/2.5Mpa |
Rated evaporation capacity | 0.5t/h---20t/h | Control System | PLC, Touch Screen, English Language |
Installation Method | Free-Installation (No Need Assembly) | Applicable Fuel | Natural Gas, LPG, Diesel, Heavy Oil |
Steam Temperature | ≤194℃ (accept customization) | Design advantage | 100% corrugated furnace, 100% water enveloped fire overall design |
Application Field | Textile, Garment, Food & Beverage, Chemical & Oil, Washing, Paper | ||

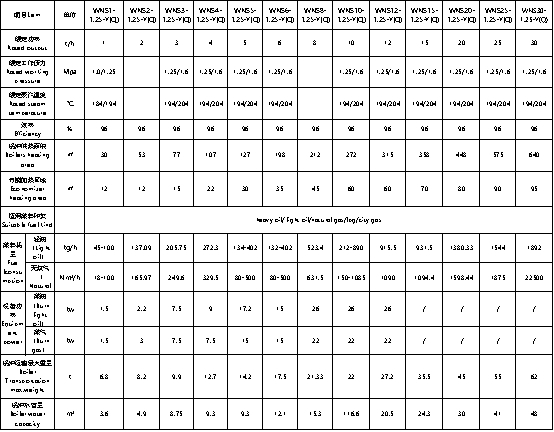

Technical Parameters：
