Key Features:
1. Compact vertical design: small footprint, suitable for space limited places (such as small factories, workshops, canteens, etc.) easy to install, low foundation requirements, save civil engineering costs.
2. Fire tube structure, high thermal efficiency: the combination of fire tube and smoke pipe is used for heat transfer, the heat transfer efficiency is fast, and the steam is produced quickly (it only takes 15-25 minutes from cold furnace ignition to rated pressure). The thermal efficiency is more than 82%, and the exhaust temperature is less than 160℃.
3. Wide fuel adaptability: it can burn biomass particles, wood blocks, straw briquettes, etc., and the fuel cost is only 1/3-1/2 of fuel oil/gas. The furnace is optimized and designed to adapt to high moisture fuels (≤25%).
4. Simple and reliable, easy to maintain: fixed grate structure, low failure rate, suitable for intermittent operation needs. Manual ash cleaning design, low maintenance cost, no need for complex electrical control.
Core Selling Points:
1. Ultra-low investment cost: the price is only 60%-70% of the same capacity horizontal boiler.
2. Ready to use: rapid steam production to meet intermittent steam demand (e.g., disinfection, washing).
3. Policy support: Biomass fuel enjoys local environmental protection subsidies, and it is easier to meet the standards when replacing coal burning.
4. Skin and durability: the boiler body is made of Q245R steel plate, life more than 10 years.
Typical applications:
1. Small food processing (tofu workshop, brewing, steaming).
2. Steam supply for garment factory ironing and laundry room.
3. Hospital/school disinfection, small heating.
4. Agricultural greenhouse humidification, greenhouse heating.
Product spotlights:
Supplier highlights:This supplier is both a manufacturer and trader, cooperates with Fortune 500 companies and excels in quality control, offering full customization and design-based services. Main export countries include the United States, Indonesia, and Zimbabwe with a positive review rate of 100.0%.
Key attributes：
key selling points | Automatic, Easy To Operate | Material | Stainless Steel, Carbon Steel |
Fuel | Biomass Fuel Fired Wood | pressure | Low Pressure |
structure | Fire Tube | output | Steam |
usage | Industrial | type | Natural Circulation |
Style | Vertical | Warranty | 1 Year |
core components | Screw, Pump, Gear, Motor, Pressure vessel | machinery test report | Provided |
video outgoing-inspection | Provided | Weight (KG) | 3500 |
place of origin | Henan, China | brand name | Yin Xing Boiler |
dimension(l*w*h) | Refer To Models | Product | Biomass steam generator |
Thermal efficiency | ≥ 93% | Rated pressure | 10bar |
Rated evaporation capacity | 0.05t/h---1t/h | Control System | PLC, Touch Screen, English Language |
Installation Method | Free-Installation (No Need Assembly) | Applicable Fuel | Biomass, firewood |
Steam Temperature | 184℃ (accept customization) | Design advantage | 100% corrugated furnace, 100% water enveloped fire overall design |
Application Field | Textile, Garment, Food & Beverage, Chemical & Oil, Washing, Paper | ||

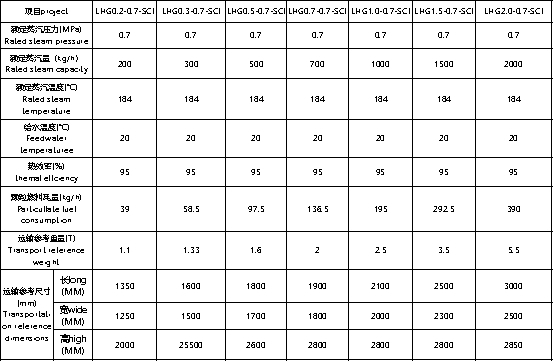

Technical Parameters：
