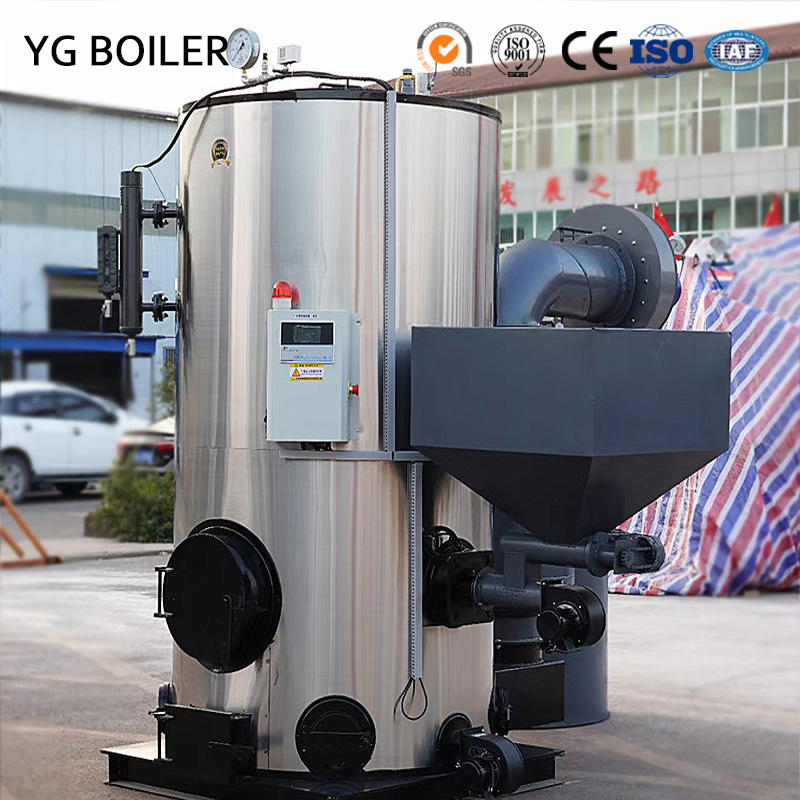

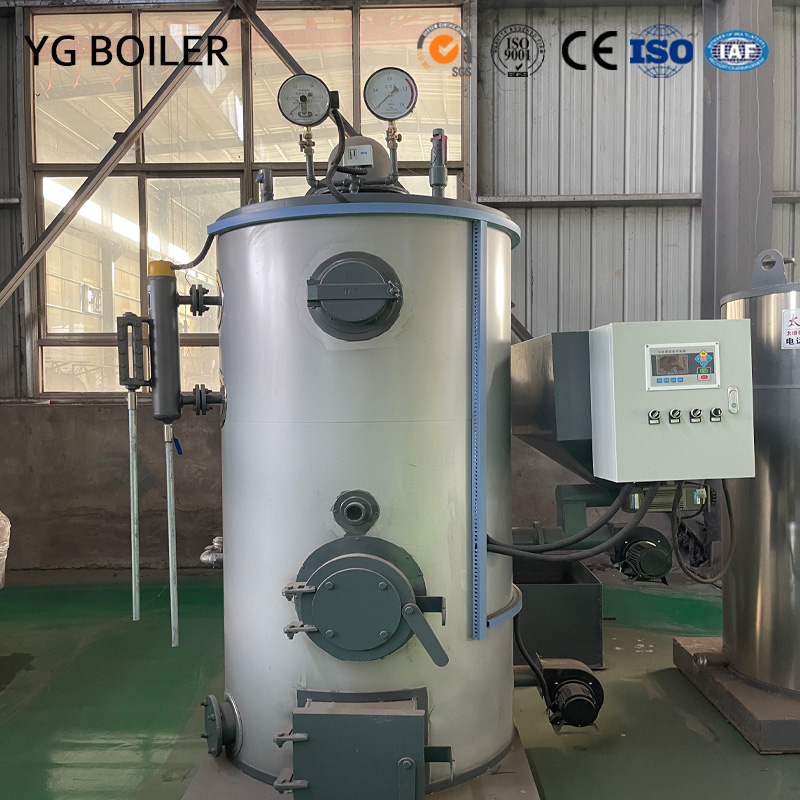

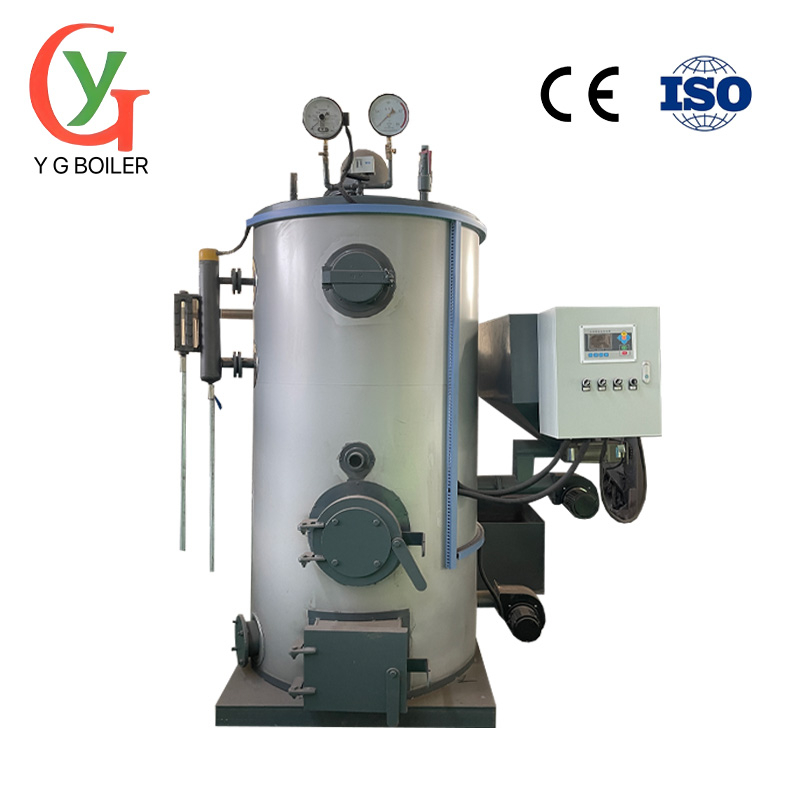

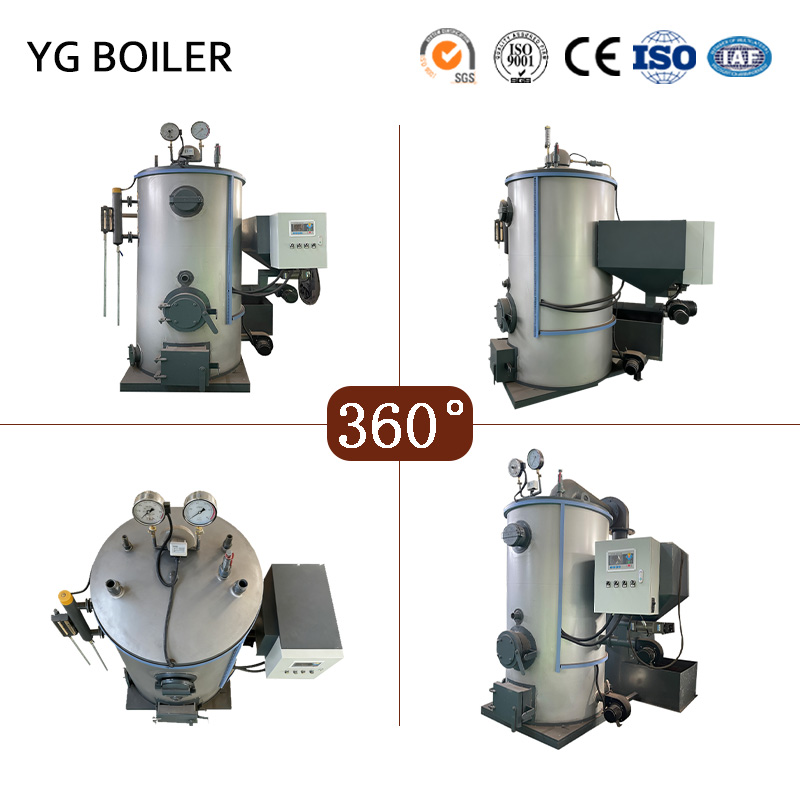

CLHG Vertical Combustion Biomass Hot Water Boiler

Key Features:

1. Pressure-free safety design: operate in no pressure/micro pressure mode (≤0.1MPa), no need for installation supervision and inspection, completely eliminate the risk of pressure explosion, especially suitable for schools, hospitals and other public places.

2. Compact structure: the floor space is only 1/3 of the horizontal boiler with the same power, modular design, no special boiler room is needed for installation.

3. Efficient fire tube heat transfer: three return flue tube design, thermal efficiency ≥83%, unique turbulence sheet to enhance heat transfer technology, exhaust temperature ≤140℃.

4. Specialized biomass furnace: optimize the throat air distribution structure to adapt to fuels such as straw and wood chips with moisture content less than or equal to 30%; provide fire observation hole and ash cleaning door for intuitive and simple operation and maintenance.

Core Selling Points:

1. Ultra low threshold of use: atmospheric pressure design does not need to apply for use registration certificate.

2. Fuel cost savings: 60% lower operating costs than gas boilers.

3. Fast installation: the whole machine is factory, on-site connection of water and electricity can be used.

4. Environmental compliance: the dust emission after supporting dust collector is less than or equal to 30mg/m³.

5. Policy benefits: Purchase subsidies for biomass energy equipment.

Typical applications:

1. Distributed heating (places below 2000㎡).

2. Farming constant temperature hot water system.

3. Agricultural products processing (mushroom room, drying room).

4. Hot spring resort hot water supply.

Key attributes：

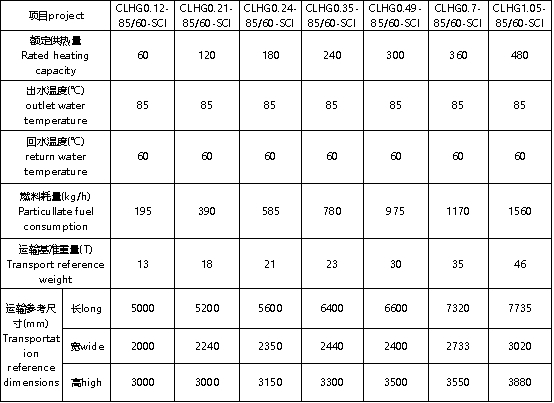

Technical Parameters：
