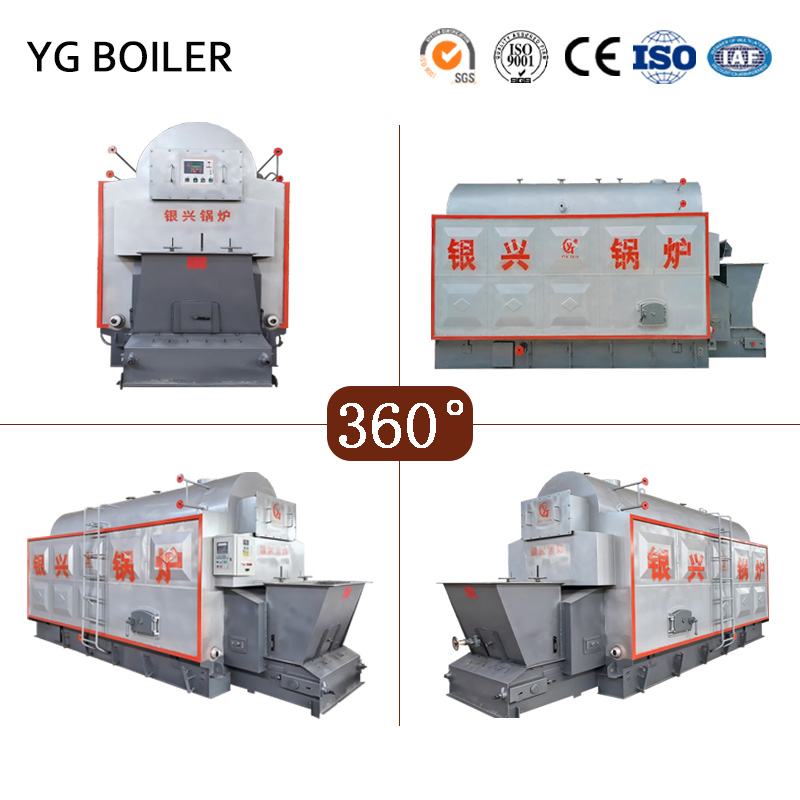

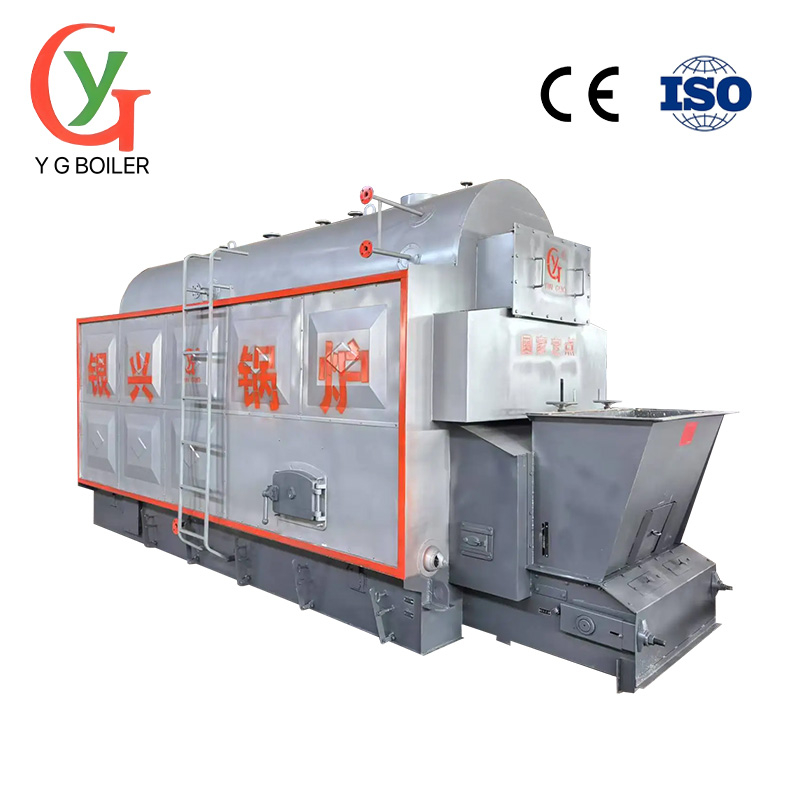

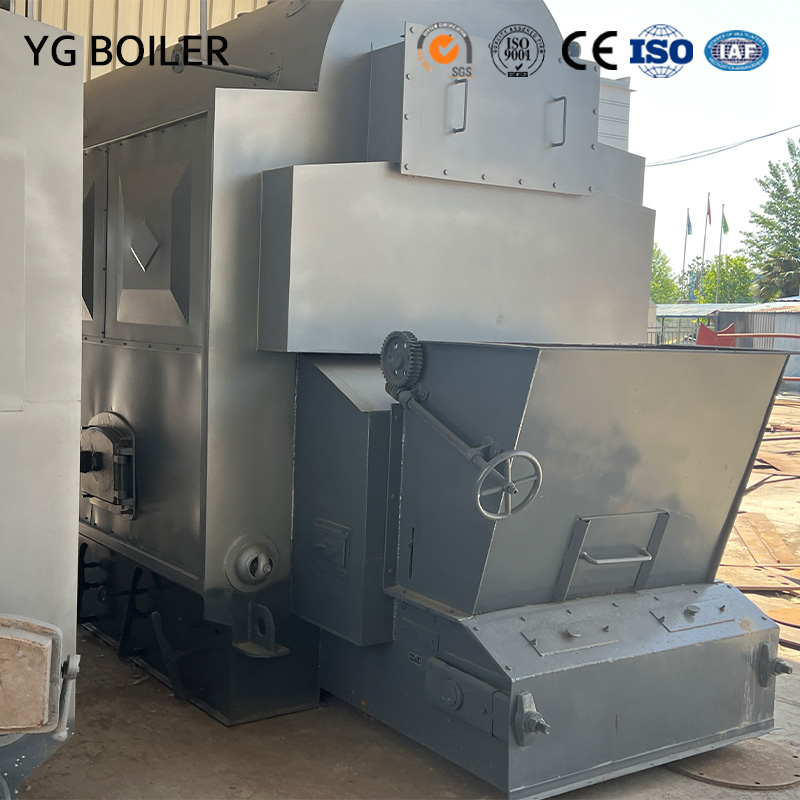

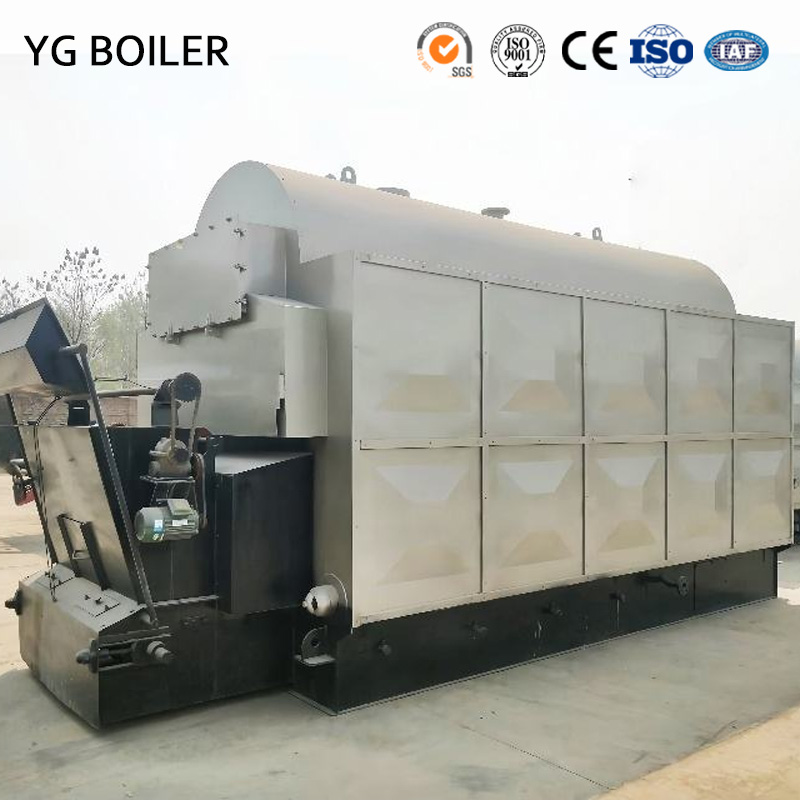

DZL Fully Automatic Biomass Steam Boiler

Key Features:

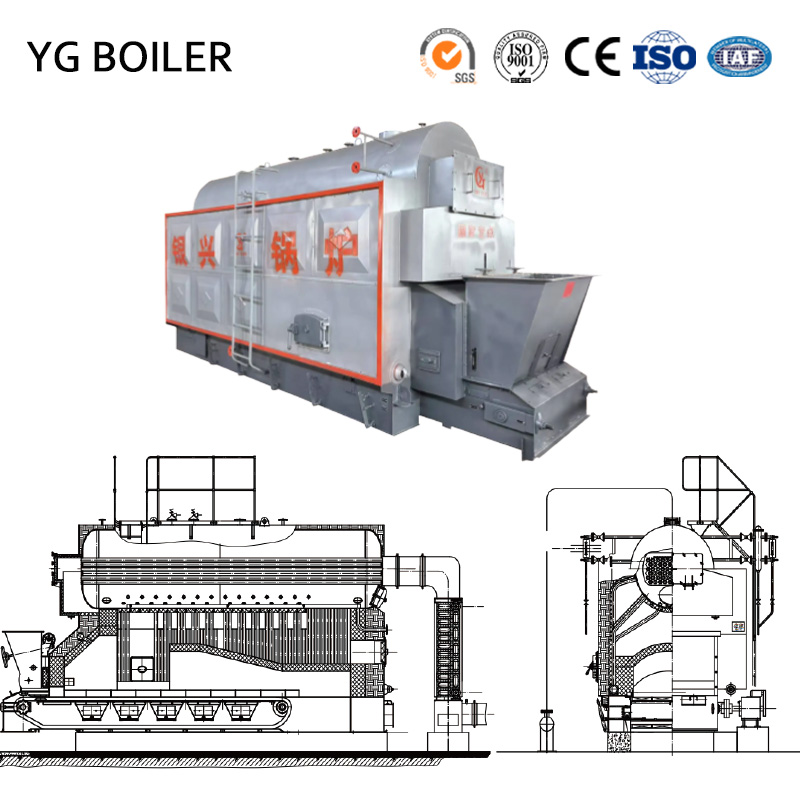

1. Efficient combustion system: Featuring a single-drum vertical chain grate design with a unique arched furnace structure that enhances combustion efficiency to ≥88%, while accommodating various biomass fuels.

2. Environmental protection and energy saving: in line with the national emission standard of class I area, NOx emission is less than or equal to 150mg/m³. Multi-pipe dust collector is configured, so the emission of soot is less than or equal to 30mg/m³.

3. Stable and reliable: automatic feeding + mechanical slag removal system, can run for more than 24 hours continuously. The boiler body is made of 20# boiler steel, service life of more than 12 years.

4. Intelligent control: standard PLC automatic control system to realize automatic ignition and constant temperature control optional Internet of things module to support mobile phone remote monitoring.

Core Selling Points:

1. Wide fuel adaptability: can burn particles, briquettes, wood chips and other forms of biomass fuel.

2. Easy to maintain: the grate can be disassembled in sections, easy to clean, low maintenance cost.

3. High cost performance: the price is only 1/3 of the gas boiler, short payback period.

4. Policy advantages: Enjoy national renewable energy subsidies and tax incentives.

Typical applications:

1. District heating (residential areas, schools, hospitals).

2. Industrial heat (food processing, textile printing and dyeing, wood drying).

3. Agricultural greenhouse heating.

Product spotlights:

Feature highlights:This horizontal fully automatic steam boiler features a three-return furnace design, threaded smoke pipe, and self-dusting function, ensuring high thermal efficiency of ≥98%. It supports multiple fuels including biomass, firewood, and coal, with customizable steam temperature up to 194℃. Equipped with a PLC control system and touch screen in English, it offers easy operation and reliable performance for industrial applications such as textile, food & beverage, and chemical industries. The product is CE certified, ensuring compliance with EU safety standards and providing market access for buyers.

Supplier highlights:This supplier is both a manufacturer and trader, cooperates with Fortune 500 companies and excels in quality control, offering full customization and design-based services. Main export countries include the United States, Indonesia, and Zimbabwe with a positive review rate of 100.0%.

Key attributes：

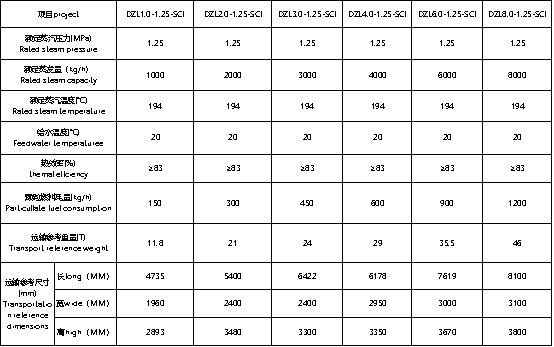

Technical Parameters：
