Key Features:
1. Eco-friendly fuel: Specifically designed for renewable fuels like biomass pellets, wood chips, and straw, achieving near-zero CO₂ emissions in line with carbon neutrality trends.
2. High-efficiency combustion: Dual-layer grate + cyclone combustion technology ensures over 85% efficiency with flue gas temperatures below 160℃, Optional heat recovery system delivers over 90% thermal efficiency.
3. Stable operation: Mechanical feeding + automatic slag removal enables continuous operation for 8-12 hours without manual intervention. Pressure components use Q245R/Q345R steel plates, lasting over 10 years.
4. Strong adaptability: Compatible with high-moisture (≤30%) biomass fuels, solving ignition issues with straw and rice husks.
Core Selling Points:
1. Low operating costs: Biomass fuel prices are only 1/3-1/2 of gas/oil.
2. Policy support: Eligible for national renewable energy subsidies, carbon tax exemption in certain regions.
3. Modular design: 1-20t/h capacity available, quick-installation structure for easy setup.
4. Smart control: PLC automatically adjusts air-to-material ratio, anti-coking alarms, reducing manual maintenance.
Typical applications:
1. Food factories, feed mills (steam drying).
2. Textile dyeing (set machines, drying).
3. District heating (replacing coal-fired boilers).
Product spotlights：
Feature highlights:This Horizontal Fully Automatic Steam Boiler offers high thermal efficiency (≥ 98%) and operates at a rated pressure of 1.25Mpa, suitable for industries like textile, garment, food & beverage, and more. It features a three-return furnace design, threaded smoke pipe, and self-dusting function, ensuring ease of use and reliability. The boiler supports multiple fuels including biomass pellets, firewood, and coal, with customizable steam temperature options up to 194℃.
Supplier highlights:This supplier is both a manufacturer and trader, cooperates with Fortune 500 companies and excels in quality control, offering full customization and design-based services. Main export countries include the United States, Indonesia, and Zimbabwe with a positive review rate of 100.0%.
Key attributes：
key selling points | Automatic, Easy To Operate | Material | Stainless Steel, Carbon Steel |
Fuel | Biomass, firewood, coal | pressure | Low Pressure |
structure | Fire Tube | output | Steam |
usage | Industrial | type | Natural Circulation |
Style | Horizontal | Warranty | 1 Year |
core components | Screw, Pump, Gear, Motor, Pressure vessel | machinery test report | Provided |
video outgoing-inspection | Provided | Weight (KG) | 10000 |
place of origin | Henan, China | brand name | Yin Xing Boiler |
dimension(l*w*h) | Refer To Models | Product | Horizontal Fully Automatic Steam Boiler |
Thermal efficiency | ≥ 98% | Rated pressure | 1.25Mpa |
Rated evaporation capacity | 1t/h---4t/h | Control System | PLC, Touch Screen, English Language |
Installation Method | Free-Installation (No Need Assembly) | Applicable Fuel | Biomass, firewood, coal |
Steam Temperature | ≤194℃ (accept customization) | Design advantage | Three Return Furnace, Threaded Smoke Pipe, Self-dusting Function |
Application Field | Textile, Garment, Food & Beverage, Chemical & Oil, Washing, Paper | ||

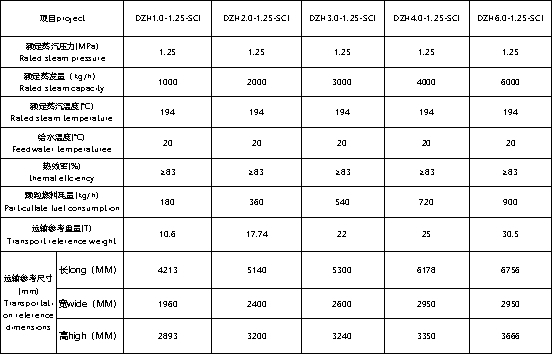

Technical Parameters：
