Key Features:
1. Ultra-fast steam production: steam can be produced in 5 minutes (traditional boiler takes more than 30 minutes) Steam dryness is up to 98%.
2. Three cycles design, thermal efficiency ≥96% ,exhaust temperature ≤120℃.
3. Intelligent control: PLC automatic control system, support Internet of things remote monitoring.
4. Safe and reliable: 8 safety protection (off, overpressure, lack of water, etc.) The body is made of Q345R boiler steel.
Core Selling Points:
1. Exemption from reporting: water volume <30L, not special equipment.
2. Low nitrogen environment protection: NOx emission <30mg/m³.
3. Ready to use: no need to wait for heat up.
4. Simple maintenance: detachable design, easy to maintain.
Typical applications:
1. Small food processing
2. Medical disinfection.
3. Laundry room ironing.
4. Steam for laboratory use.
5. Sauna bathing.
Product spotlights:
Supplier highlights:This supplier is both a manufacturer and trader, cooperates with Fortune 500 companies and excels in quality control, offering full customization and design-based services. Main export countries include the United States, Indonesia, and Zimbabwe with a positive review rate of 100.0%.
Key attributes：
key selling points | Automatic, Easy To Operate | Material | Stainless Steel, Carbon Steel |
Fuel | Gas-fired/Oil-fired | pressure | Low Pressure |
structure | Fire Tube | output | Steam |
usage | Industrial | type | Natural Circulation |
Style | Vertical | Warranty | 1 Year |
core components | Screw, Pump, Gear, Motor, Pressure vessel | machinery test report | Provided |
video outgoing-inspection | Provided | Weight (KG) | 3500 |
place of origin | Henan, China | brand name | Yin Xing Boiler |
dimension(l*w*h) | Refer To Models | Product | Oil gas steam generator |
Thermal efficiency | ≥ 93% | Rated pressure | 0.7MPa |
Rated evaporation capacity | 0.05t/h---1t/h | Control System | PLC, Touch Screen, English Language |
Installation Method | Free-Installation (No Need Assembly) | Applicable Fuel | Oil,gas |
Steam Temperature | 197℃ (accept customization) | Design advantage | 100% corrugated furnace, 100% water enveloped fire overall design |
Application Field | Textile, Garment, Food & Beverage, Chemical & Oil, Washing, Paper | ||

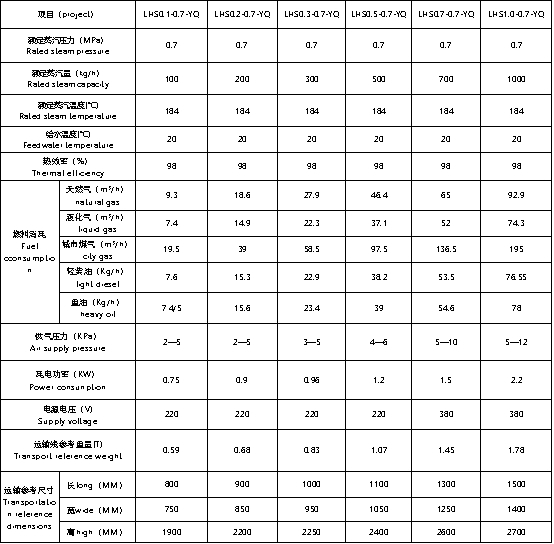

Technical Parameters：
